t3danim.h File Reference

#include "t3dmodel.h"
#include "t3dskeleton.h"

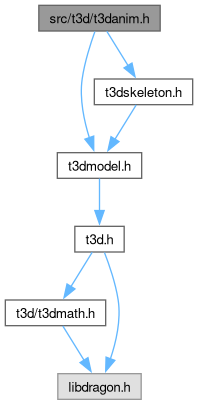

Include dependency graph for t3danim.h:

Go to the source code of this file.

Data Structures
struct	T3DAnimTargetBase
struct	T3DAnimTargetQuat
struct	T3DAnimTargetScalar
struct	T3DAnim

Macros
#define	T3D_ANIM_TARGET_TRANSLATION   0
#define	T3D_ANIM_TARGET_SCALE_XYZ   1
#define	T3D_ANIM_TARGET_SCALE_S   2
#define	T3D_ANIM_TARGET_ROTATION   3

Functions
T3DAnim	t3d_anim_create (const T3DModel *model, const char *name)
void	t3d_anim_attach (T3DAnim *anim, const T3DSkeleton *skeleton)
void	t3d_anim_attach_pos (T3DAnim *anim, uint32_t targetIdx, T3DVec3 *target, int32_t *updateFlag)
void	t3d_anim_attach_rot (T3DAnim *anim, uint32_t targetIdx, T3DQuat *target, int32_t *updateFlag)
void	t3d_anim_attach_scale (T3DAnim *anim, uint32_t targetIdx, T3DVec3 *target, int32_t *updateFlag)
void	t3d_anim_update (T3DAnim *anim, float deltaTime)
void	t3d_anim_set_time (T3DAnim *anim, float time)
static float	t3d_anim_get_time (const T3DAnim *anim)
static float	t3d_anim_get_length (const T3DAnim *anim)
static void	t3d_anim_set_speed (T3DAnim *anim, float speed)
static void	t3d_anim_set_playing (T3DAnim *anim, bool isPlaying)
static void	t3d_anim_set_looping (T3DAnim *anim, bool loop)
void	t3d_anim_destroy (T3DAnim *anim)

Detailed Description

Copyright

2024 - Max Bebök @license MIT

Function Documentation

t3d_anim_attach()

void t3d_anim_attach	(	T3DAnim *	anim,
		const T3DSkeleton *	skeleton )

Attaches an animation to a skeleton.

Parameters

anim	The animation to attach
skeleton	The skeleton to attach the animation to

t3d_anim_attach_pos()

void t3d_anim_attach_pos	(	T3DAnim *	anim,
		uint32_t	targetIdx,
		T3DVec3 *	target,
		int32_t *	updateFlag )

Attaches a single position target to a single channel target. This can be used to override an earlier attachment from 't3d_anim_attach'.

Parameters

anim	animation to attach to
targetIdx	index of the target bone
target	position to update
updateFlag	set to '1' if changed, '2' if animation rolled over

t3d_anim_attach_rot()

void t3d_anim_attach_rot	(	T3DAnim *	anim,
		uint32_t	targetIdx,
		T3DQuat *	target,
		int32_t *	updateFlag )

Attaches a single rotation target to a single channel target. This can be used to override an earlier attachment from 't3d_anim_attach'.

Parameters

anim	animation to attach to
targetIdx	index of the target bone
target	rotation to update
updateFlag	set to '1' if changed, '2' if animation rolled over

t3d_anim_attach_scale()

void t3d_anim_attach_scale	(	T3DAnim *	anim,
		uint32_t	targetIdx,
		T3DVec3 *	target,
		int32_t *	updateFlag )

Attaches a single scale target to a single channel target. This can be used to override an earlier attachment from 't3d_anim_attach'.

Parameters

anim	animation to attach to
targetIdx	index of the target bone
target	scale to update
updateFlag	set to '1' if changed, '2' if animation rolled over

t3d_anim_create()

T3DAnim t3d_anim_create	(	const T3DModel *	model,
		const char *	name )

Creates an animation instance from a model's animation definition

Parameters

model	The model to create the animation from
name	The name of the animation to create

Returns

The created animation

t3d_anim_destroy()

void t3d_anim_destroy

(

T3DAnim *

anim

)

Frees data allocated in the animation struct.

Parameters

anim

t3d_anim_get_length()

static float t3d_anim_get_length ( const T3DAnim * anim )

static

Returns the length of an animation in seconds.

Parameters

anim	animation to get length for

Returns

length in seconds

t3d_anim_get_time()

static float t3d_anim_get_time ( const T3DAnim * anim )

static

Returns the current time of an animation in seconds. Alternatively, you can also read the 'time' member directly.

Parameters

anim	animation to get time for

Returns

current time in seconds

t3d_anim_set_looping()

static void t3d_anim_set_looping ( T3DAnim * anim, bool loop )

inlinestatic

Sets the animation to loop or not. If the animation is not set to loop, you will have to call 't3d_anim_set_playing' to play it again.

Parameters

anim	animation to set loop for
loop	true to loop, false to stop at the end

t3d_anim_set_playing()

static void t3d_anim_set_playing ( T3DAnim * anim, bool isPlaying )

inlinestatic

Set the animation to playing or paused. Note: this works independently of setting the speed to 0.

Parameters

anim
isPlaying	true to play, false to pause

t3d_anim_set_speed()

static void t3d_anim_set_speed ( T3DAnim * anim, float speed )

inlinestatic

Sets the speed of the animation. Note: reverse playback (speed < 0) is currently not supported.

Parameters

anim	animation to set speed for
speed	speed as a factor, default: 1.0

t3d_anim_set_time()

void t3d_anim_set_time	(	T3DAnim *	anim,
		float	time )

Sets the animation to a specific time. Note: this may cause some work internally due to potential DMAs.

Parameters

anim	animation to set time for
time	time in seconds

t3d_anim_update()

void t3d_anim_update	(	T3DAnim *	anim,
		float	deltaTime )

Updates an animation, this will actually play it and apply the changes to the skeleton.

Parameters

anim	animation to update
deltaTime	time since last update (seconds)
