#include "t3dmodel.h"

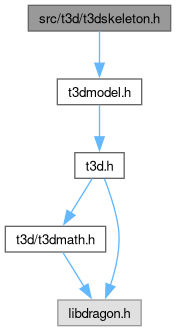

Include dependency graph for t3dskeleton.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	T3DBone

struct	T3DSkeleton

Functions
T3DSkeleton	t3d_skeleton_create_buffered (const T3DModel *model, int bufferCount)

static T3DSkeleton	t3d_skeleton_create (const T3DModel *model)

static void	t3d_skeleton_use (const T3DSkeleton *skel)

T3DSkeleton	t3d_skeleton_clone (const T3DSkeleton *skel, bool useMatrices)

void	t3d_skeleton_reset (T3DSkeleton *skeleton)

void	t3d_skeleton_blend (const T3DSkeleton skelRes, const T3DSkeleton skelA, const T3DSkeleton *skelB, float factor)

void	t3d_skeleton_update (T3DSkeleton *skeleton)

void	t3d_skeleton_destroy (T3DSkeleton *skeleton)

int	t3d_skeleton_find_bone (T3DSkeleton skeleton, const char name)

static T3DVec3	t3d_skeleton_get_bone_pos_model_space (const T3DSkeleton *skeleton, int boneIdx)

static void	t3d_model_draw_skinned (const T3DModel model, const T3DSkeleton skeleton)

Detailed Description

Copyright: 2024 - Max Bebök @license MIT

Function Documentation

◆ t3d_model_draw_skinned()

static void t3d_model_draw_skinned	(	const T3DModel *	model,
		const T3DSkeleton *	skeleton )

inlinestatic

Draws a skinned model with default settings. Alternatively, use 't3d_model_draw_custom' and set 'matrices' in the config.

Parameters

model

◆ t3d_skeleton_blend()

void t3d_skeleton_blend	(	const T3DSkeleton *	skelRes,
		const T3DSkeleton *	skelA,
		const T3DSkeleton *	skelB,
		float	factor )

Blends two skeletons together. Note: it is safe to use the same skeleton as an input and output parameter.

Parameters

skelRes	Resulting skeleton
skelA	First skeleton
skelB	Second skeleton
factor	Blend factor (0.0-1.0), you are allowed to go beyond these values to "overdrive" animations

◆ t3d_skeleton_clone()

T3DSkeleton t3d_skeleton_clone	(	const T3DSkeleton *	skel,
		bool	useMatrices )

Clones a skeleton instance. This can also be used to create optimized skeletons for blending animations.

Parameters

skel	Skeleton to clone
useMatrices	If false, no matrices will be allocated, this is useful for blending animations

Returns: Cloned skeleton

◆ t3d_skeleton_create()

static T3DSkeleton t3d_skeleton_create ( const T3DModel * model )

inlinestatic

Creates a skeleton instance from a model's skeleton definition

Parameters

model The model to create the skeleton from

Returns: The created skeleton

◆ t3d_skeleton_create_buffered()

T3DSkeleton t3d_skeleton_create_buffered	(	const T3DModel *	model,
		int	bufferCount )

Creates a skeleton instance from a model's skeleton definition. It will internally reserve multiple matrix stacks to allow for buffering. This can be used to update a skeleton while the last frame is still being rendered. Note that only the fixed-point matrices are buffered, the bone data itself is not.

Parameters

model	The model to create the skeleton from
bufferCount	number of buffers, should match the frame-buffer count

Returns: The created skeleton

Copyright: 2024 - Max Bebök @license MIT

◆ t3d_skeleton_destroy()

void t3d_skeleton_destroy ( T3DSkeleton * skeleton )

Frees data allocated in the skeleton struct. Note: it's safe to call this multiple times, pointers are set to NULL.

Parameters

skeleton The skeleton to destroy

◆ t3d_skeleton_find_bone()

int t3d_skeleton_find_bone	(	T3DSkeleton *	skeleton,
		const char *	name )

Tries to finds a bone with the given name in the skeleton. Returns the index of the bone or -1 if not found.

Parameters

skeleton	The skeleton to search in
name	Name of the bone to find

Returns: Index of the bone or -1 if not found

◆ t3d_skeleton_get_bone_pos_model_space()

static T3DVec3 t3d_skeleton_get_bone_pos_model_space	(	const T3DSkeleton *	skeleton,
		int	boneIdx )

inlinestatic

Gets the position in model space of the bone with the given index from its matrix. This assumes the bone matrix has been updated beforehand with t3d_skeleton_update.

Parameters

skeleton	The skeleton containing the bone
boneIdx	Index of the bone

Returns: The T3DVec3 position of the bone in model space

◆ t3d_skeleton_reset()

void t3d_skeleton_reset ( T3DSkeleton * skeleton )

Resets a skeleton to its initial state (resting pose). This can be useful when switching between animations. Note: To recalculate the bone matrices too, call 't3d_skeleton_update' afterwards.

Parameters

skeleton The skeleton to reset

◆ t3d_skeleton_update()

void t3d_skeleton_update ( T3DSkeleton * skeleton )

Updates the skeleton's bone matrices if data has changed. Call this after making changes to the bones individual properties (pos/rot/scale). To make this work, the hasChanged flag in the bone must also be set

Parameters

skeleton The skeleton to update

◆ t3d_skeleton_use()

static void t3d_skeleton_use ( const T3DSkeleton * skel )

inlinestatic

Sets the given skeleton up for the next draw call. This has to be used for buffered skeletons, but is a no-op for single-buffer skeletons.

Parameters

skel	skeleton to use in the next draw
