Object-Scripts

Now we will focus on how to create a script for an object.

Creating Scripts

Creating a script is very simple, in the “Files” tab under “Scripts” you can see all existing scripts.
If you click the “+” icon, you can add a new one after entering a file name.

Once done, the editor creates it in the src/user/ directory of your project,
and now lists it in the editor.

Pyrite64 has no builtin code editor, so an external one (e.g. VSCode, CLion) is required.

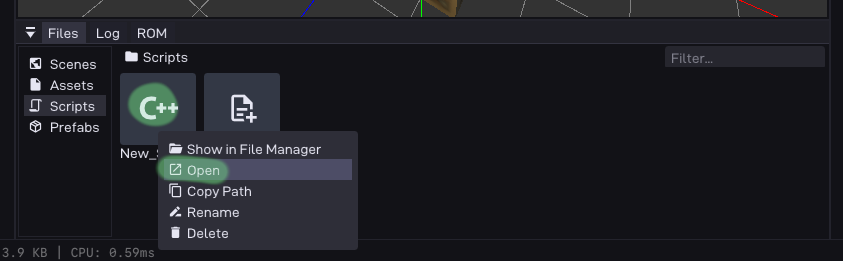

Either navigate to the directory, or right-click on the entry in the editor to open it:

Since scripts are internally identified by a UUID stored in the file itself,
you are free to move or rename files at any point.

Using Scripts

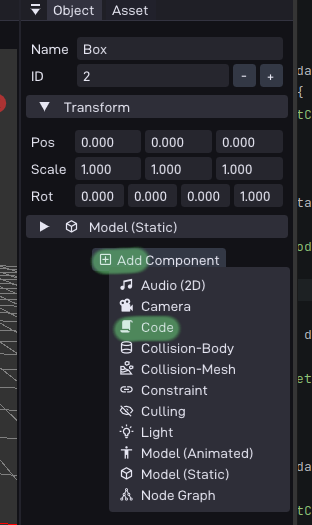

Select the object you want to attach the script to,
and add a new “Code” component to it:

Once done, you can now choose your script in the select-box:
Alternatively, drag and drop the script from the list view into the select-box.

You can add as many different scripts to an object as you want.
This is useful to compose behaviors by having simple scripts that can be combined.

Using the same script on multiple objects is of course also possible.
This happens naturally when you, for example, place multiple instances of the same object.

Script Contents

Files have the following structure:

#include "script/userScript.h"
#include "scene/sceneManager.h"

namespace P64::Script::C4640C925988CA72
{
  P64_DATA(
    // data for the script instance
  );

  // one or more functions will follow...
}

All object scripts are put in the P64::Script namespace, with their own UUID as the last name.
The UUID (here C4640C925988CA72) is generated when the script is created,
and is used internally to identify it.
Renaming the file is therefore allowed, as long as the UUID is not touched.

Inside the namespace are two sections: a data block, and functions.

Data Block

P64_DATA is a macro that will expand into a struct definition,
you can put any variables you want in there, or keep it empty.
For example:

P64_DATA(
  fm_vec3_t direction;
  float speed;
  int status;
);

Warning:

Complex data types in P64_DATA should be avoided, constructors / destructors are not called automatically!

At runtime this struct is then instantiated for each object that has that script.
Note ths this happens automatically, you don’t need to manage this memory yourself.

Variables can also be exposed to the editor to allow setting an initial value.
By default this is disabled, and you need to put a P64::Name attribute on members:

P64_DATA(
  [[P64::Name("Speed")]]
  float speed;
  [[P64::Name("Some Other Value")]]
  int status;

  int noExposed;
);

Please make sure to put all exposed variables at the top of the block
without any non-exposed variables in between.
Ideally, also avoid any gaps in the memory layout to avoid misalignment issues:

P64_DATA(
  [[P64::Name("Status")]]
  uint8_t status;
  // BAD: has 3 bytes of hidden alignment!
  [[P64::Name("Speed")]]
  float speed;
);

While you can use any type you want for variables,
exposed ones are limited to a few known types:

• Integers: uint8_t, int8_t, uint16_t, int16_t, uint32_t, int32_t

• Float: float

• References: AssetRef<sprite_t>, ObjectRef

The reference types allow you to plug in assets or objects from the editor.

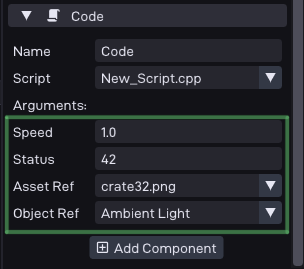

In the editor, you can now see the values showing up:

Since a script is just a regular C++ file, it is also possible to have global memory.
This can be useful to share data global across all instances of a script.

The recommended way to do this is by using an anonymous namespace.
Just be aware that nothing in there can be exposed to the editor,
and any memory must be manually managed by you.

#include "script/userScript.h"
#include "scene/sceneManager.h"

// Global data shared across all instances:
namespace
{
  float someGlobalValue{42.0f};
}

namespace P64::Script::C4640C925988CA72
{
  ...
}

Functions

The other section is a set of functions you can provide.
A newly created script will contain all of them by default,
and you can remove the ones you do not need.

All functions have at least two common arguments:

• Object& obj - The object the script is attached to

• Data *data - Data pointer for this instance, structure as defined in P64_DATA

Currently allowed functions are:

Init

void init(Object& obj, Data *data)

Initialization function, called once when the object spawns.
At this point data has already been initialized with the values from the editor,
or for non-exposed variables set to zero.
If you do have non-trivial data types as variables, please also manually construct them here.

Destroy

void destroy(Object& obj, Data *data)

Opposite of init, called once when the object is destroyed.
This is the place to manually free any memory you may have allocated in init.
If you do have non-trivial data types as variables, please also manually destruct them here.

Accessing other components of the object is not safe, as they might have been destroyed already.
The object itself is still valid however, this can be useful to e.g. send an event to other objects.

Update

void update(Object& obj, Data *data, float deltaTime)

Called once per frame, before starting to draw anything.
This is the place to put all your logic in, for example moving the object,
interacting with other objects, accessing other components, etc.

To help with frame-rate independent movement, deltaTime is provided as an argument.
This should be multiplied with any change in transformation.

For example, here is a function that moves an object at a constant speed:

void update(Object& obj, Data *data, float deltaTime)
{
  constexpr fm_vec3_t dir{0.0f, 0.0f, 1.0f};
  obj.pos += dir * (deltaTime * data->speed);
}

Or one that rotates it around an axis:

void update(Object& obj, Data *data, float deltaTime)
{
  constexpr fm_vec3_t rotAxis{0.0f, 0.5f, 0.2f};
  fm_quat_rotate(&obj.rot, &obj.rot, &rotAxis, deltaTime * ROT_SPEED);
  fm_quat_norm(&obj.rot, &obj.rot);
}

Draw

void draw(Object& obj, Data *data, float deltaTime)

Called once per frame and once per active camera.
Here you can put custom drawing logic, most commonly any 2D draws.
Any builtin mesh-components attached to an object draw themselves automatically,
so you don’t need to do anything for that here.

If you have a culling-component attached, then this function may not always be called.
Similarly, it may get called multiple times in case you have multiple active cameras.

If you need to know the current camera you are drawing for,
use obj.getScene().getActiveCamera().

By default, all draws assume to be running in the first 3D draw-layer.
If you wish to draw 2D elements, first switch to a 2D layer and then back afterwards:

void draw(Object& obj, Data *data, float deltaTime)
{
  DrawLayer::use2D();
    // some 2D draw
    rdpq_sprite_blit(data->icon.get(), data->posX, data->posY, nullptr);

  DrawLayer::useDefault();
}

OnEvent

void onEvent(Object& obj, Data *data, const ObjectEvent &event)

Pyrite64’s engine implements a basic event bus for objects.
This allows them to send small messages to each other without having to know what object are.

An event is defined as such:

struct ObjectEvent
{
  uint16_t senderId{};
  uint16_t type{};
  uint32_t value{};
};

Besides the sender, you will get a type and value.
There are a few builtin types (e.g. object disable / enable), so it must be explicitly checked.

The safe range for user-defined types is from EVENT_TYPE_CUSTOM_START to EVENT_TYPE_CUSTOM_END.
This starts from 0, whereas builtin types reserve the end of the range.

The default script template defines this function as such:

void onEvent(Object& obj, Data *data, const ObjectEvent &event)
{
  switch(event.type)
  {
    case EVENT_TYPE_ENABLE: // object got enabled
    break;
    case EVENT_TYPE_DISABLE: // object got disabled
    break;
    // you can check for your own custom types here too
  }
}

It is also safe to send new events from within this function.
Any outgoing events in general are deferred to the end of the current frame.
This avoids infinite loops with objects referring to each other.

OnCollision

void onCollision(Object& obj, Data *data, const Coll::CollEvent& event)

If a collider is attached to your object, you may start to receive collision events.
The event argument gives you further information about the collision.
For example which collider object or mesh was involved.
Note that this function is directly called during the collision check, and not deferred like onEvent.

As an example, here is an object that plays a sound, spawns a particle effect,
and then removes itself after colliding.

void onCollision(Object& obj, Data *data, const Coll::CollEvent& event)
{
  AudioManager::play2D("sfx/CoinGet.wav64"_asset);
  obj.getScene().addObject("ParticlesCoin.pf"_asset, obj.pos);
  obj.remove();
}

Custom Functions

You can also put custom functions in the script.
Those are not known to the engine and also never called automatically,
but can be useful to organize your code.

Similarly to global variables, those should only be put in an anonymous namespace.
For example:

#include "script/userScript.h"
#include "scene/sceneManager.h"

// Global functions bound to this script:
namespace
{
  color_t getRainbowColor(float s) {
    float r = fm_sinf(s + 0.0f) * 127.0f + 128.0f;
    float g = fm_sinf(s + 2.0f) * 127.0f + 128.0f;
    float b = fm_sinf(s + 4.0f) * 127.0f + 128.0f;
    return color_t{(uint8_t)r, (uint8_t)g, (uint8_t)b, 255};
  }
}

namespace P64::Script::C4640C925988CA72
{
  P64_DATA(
    float time;
  );

  void update(Object& obj, Data *data, float deltaTime)
  {
    data->time += deltaTime;
    auto col = getRainbowColor(data->time);
    ...
  }

  ...
}
